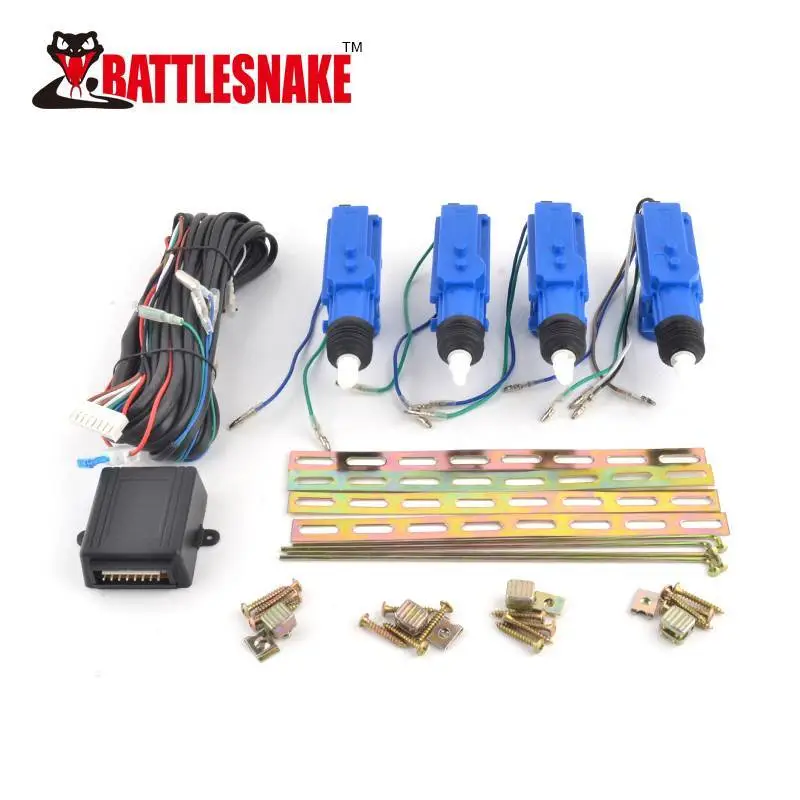

CF301MA Remote Control Car Central Door Lock Actuator Keyless Entry

    oops...!

    no product data.

    Go to homepage
    Type
    Central Locking System
    Voltage
    9V-36V
    Car Make
    Universal
    Certification
    CE, ROHS
    Specification

    Operation temperature
    -30~+75℃
    Stroke
    >18mm
    Voltage
    DC12V±10%
    No-load & load current
    1.5A±5%
    Actuating force
    4-4.5kgs
    The cover materials
    (actuators & mainunit)
    ABS
    Endurance(up & down)
    >80000 times
    Wiring
    2 master: 35.3M;
    1 master: 25.4M

    Remarks:
    1-You can choose 1 master or 2 master.
    2-You can choose the actuator head in white or black color.
    CF301MA
    1 master: 1 pcs of 5 door actuators, 3pcs of 2 door actuators
    CF301MB
    2 master: 2 pcs of 5 door actuators, 2pcs of 2 door actuators

    Function:

    1-With the metal wheel inside of the door actuator which support the working of  the high power motor 5.5kgs; 2-Don't use the recycle plastic cover materials, all used ABS; 3-Long working life, the endurance is more than 80,000.00 times; 4-With tacks for each door actuator to make sure the door actuator will not blow out.

    Packing
    Size(cm)
    Qty
    1 master Weight(kgs)
    2 master Weight(kgs)
    Color box
    25*15.5*8
    1pcs
    1kgs
    1.15kgs
    Carton
    51.5*41.5*33.5
    20pcs
    20kgs
    23kgs
    20GP container

    7000sets
    7000kgs
    8050kgs
