Two Way Car Alarm System Manufacturing Process Explained: From PCB Welding To Final Testing

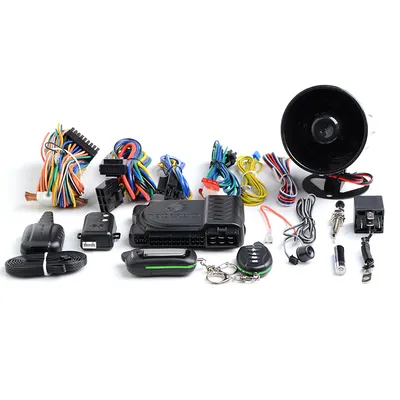

In an era where vehicle security is non-negotiable, the ​two-way car alarm system​ stands as a pinnacle of interactive protection. Unlike traditional alarms, a two-way system creates a dialogue between your vehicle and your key fob, providing real-time alerts and confirmation of your commands. But have you ever wondered about the engineering marvel you hold in your hand? The journey from raw electronic components to a reliable sentinel for your car is a fascinating tale of precision and quality control. Let’s demystify the sophisticated manufacturing process behind every high-quality ​two-way car alarm system.

Stage 1: The Brain's Blueprint - PCB Design and SMT Assembly

The heart of any ​two-way car alarm system​ is its Printed Circuit Board (PCB). This process begins long before physical assembly, with meticulous electronic design using specialized software. Engineers layout the circuit that will manage everything from RF (Radio Frequency) communication with the remote to sensor inputs and siren outputs.

Once the design is finalized, the manufacturing kicks off with ​Surface Mount Technology (SMT)​​ assembly:

• ​Stencil Printing:​​ A stainless-steel stencil is placed over the bare PCB, and solder paste is precisely applied to the pads where components will sit.

• ​Component Placement:​​ High-speed automated pick-and-place machines, guided by the digital design files, accurately position hundreds of tiny components—resistors, capacitors, microchips, and the system's main microcontroller—onto the solder paste in seconds.

• ​Reflow Soldering:​​ The populated PCB travels through a reflow oven. A carefully controlled temperature profile melts the solder paste, forming permanent electrical and mechanical connections without manual ​PCB welding​ for these micro-components.



Stage 2: The Human Touch - Through-Hole & Conformal Coating

Not all components are suited for SMT. Larger elements like power connectors, certain relays, or the siren driver components require ​Through-Hole Technology (THT)​.

• Here, components with wire leads are inserted into designated holes on the PCB.

• This stage often involves skilled technicians and automated insertion machines, followed by wave soldering or selective hand ​PCB welding​ to create robust connections that can handle higher electrical loads and physical stress.

After soldering, the PCB undergoes cleaning to remove any flux residue. A critical step follows: ​conformal coating. A thin, protective polymer layer is sprayed over the entire assembled board. This coating shields the sensitive circuitry from environmental hazards like moisture, dust, chemicals, and temperature extremes—essential for a device that must operate reliably in a vehicle's harsh under-dash environment.

Stage 3: Bringing the System to Life - Enclosure, Antenna, & Peripheral Integration

With the "brain" complete, it's time to build the body. The main control unit is housed in a rugged, often tamper-resistant enclosure. Simultaneously, other critical parts are prepared:

• ​RF Antenna Integration:​​ The performance of the ​two-way car alarm system​ hinges on its antenna. This is carefully integrated, either within the main housing or as a separate module, and tuned to the specific frequency bands for optimal range and signal integrity.

• ​Peripheral Assembly:​​ Components like the high-decibel piezo siren, the shock/impact sensors, LED status indicators, and the all-important valet switch are assembled. The wiring harness—the nervous system connecting the main unit to the vehicle's electronics—is fabricated with precision color-coded wires and connectors.

Stage 4: The Crucial Dialogue - Programming & RF Pairing

This is what defines a ​two-way car alarm system. Each main unit and its corresponding key fob remotes are not interchangeable out of the box. They must be uniquely paired.

• The main unit is flashed with its core firmware, which governs all logic and responses.

• Using specialized programming stations, each remote's unique digital identity (its rolling code) is registered with its specific main unit. This secure "handshake" protocol ensures that your fob communicates only with your alarm, preventing interference and code-grabbing theft attempts.

Stage 5: Ensuring Flawless Performance - Rigorous Final Testing

No unit leaves the factory without passing a gauntlet of tests. This phase is where quality is assured.

1. ​In-Circuit Test (ICT):​​ Automated test probes check for correct component values, solder shorts, and opens on the PCB.

2. ​Functional Testing:​​ The assembled system is powered on and put through its paces. Testers simulate real-world scenarios:

   • Triggering each sensor (door, hood, trunk, shock) to verify the main unit processes the input correctly.

   • Testing every command from the paired remote (arm, disarm, panic, remote start if equipped) and confirming the ​two-way​ feedback signal is received and displayed on the fob.

   • Verifying siren output, LED flashes, and immobilizer relay triggers.

3. ​RF Range & Stability Test:​​ Units are tested in anechoic chambers or controlled environments to ensure the remote's transmit range and the main unit's receiver sensitivity meet strict specifications.

4. ​Environmental Stress Screening (ESS):​​ A sample from each production batch may undergo stress tests, including temperature cycling and voltage fluctuation tests, to weed out any infant mortality failures.

Stage 6: Packaging & Dispatch

The fully tested and certified ​two-way car alarm system​ is carefully packaged with its user manual, warranty card, all necessary wiring, sensors, and the paired remotes. It is then boxed and prepared for its journey to distributors, installers, and ultimately, to guard your vehicle.

More Than Just an Assembly Line

The manufacturing of a ​two-way car alarm system​ is a symphony of advanced automation, skilled craftsmanship, and uncompromising testing. It’s a process built on the understanding that this device is entrusted with the security of a valuable asset. From the microscopic precision of ​PCB welding​ to the real-world simulation of ​final testing, every step is geared towards creating a reliable, intelligent partner in vehicle security. When you press the button on your remote and receive that confirming chirp and flash on the fob, you’re witnessing the end result of this intricate and rigorous manufacturing journey.
