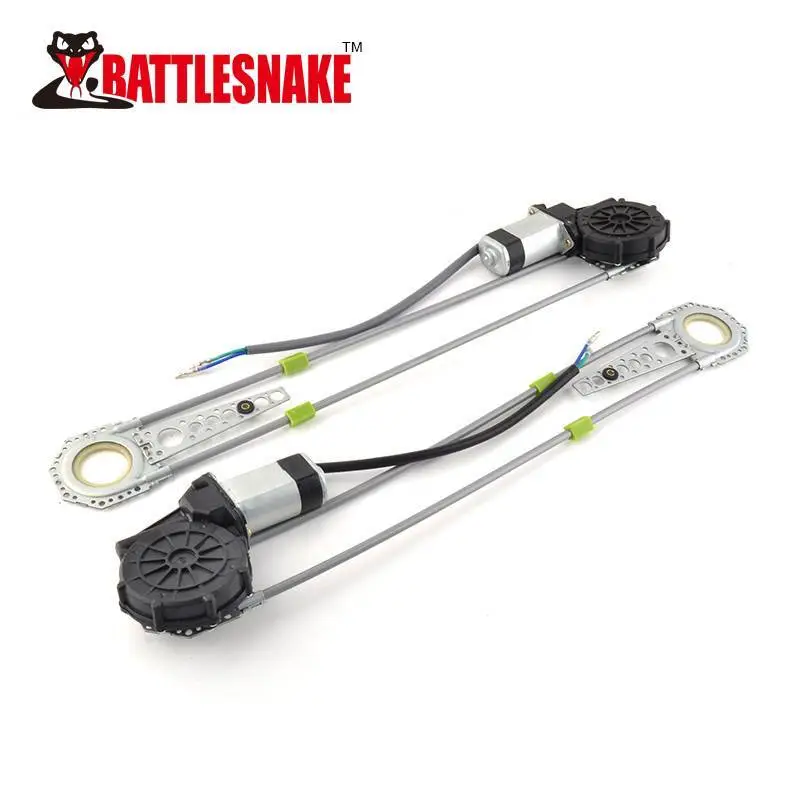

CF6003A Power Window Kit 2 Doors 4 Doors
5.0
Model:
CF6003A
Minimum:
20
Payment:
T/T； western union; PayPal
Origin:
Guangdong, China (Mainland)
Brand:
BATTLESNAKE
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Type
Power Window Kit
Voltage
9V-36V
Car Make
Universal
Certification
CE, ROHS
CF6003 universal car power window kit a whole accessories:
| 1 | Electric power motor L+R | 2pcs | 7 | Adaptors | 2pcs |
| 2 | Caps | 2pcs | 8 | Gears | 2pcs |
| 3 | Circlip | 2pcs | 9 | Bracket | 8pcs |
| 4 | Retainer Ring | 2pcs | 10 | Rubber bush | 8pcs |
| 5 | Speed Nut | 4pcs | 11 | Metal Bush | 8pcs |
| 6 | Spacers | 1pcs | 12 | Screw 4x16 | 20pcs |
| 14 | Color box + user Manual | 2pcs | 13 | Screw 3x5 | 22pcs |
Specification:
| Working voltage | 12VDC | Vorking current | less or equal 15A |
| C.W | N.m | A | rpm |
| No Load | 0.34 | 2.15 | 110 |
| WP Point | 1.20 | 4.51 | 100 |
| Stall | 7.68 | 21.87 | 0 |
| CCW | N.m | A | Rpm |
| No Load | 0.24 | 2.17 | 116 |
| WP point | 1.20 | 5.29 | 96 |
| Stall | 7.23 | 19.68 | 0 |
Package:
| Size(cm) | Qty | 2 window Weight(kgs) | 4 window Weight(kgs) | |
| Color box | 60*15*9 | 1pcs | 3kgs | 6kgs |
| Carton | 65*55*32.5 | 10pcs | 30kgs | 30kgs(5sets/CTN) |
| 20GP container | 2400sets | 7200kgs |
